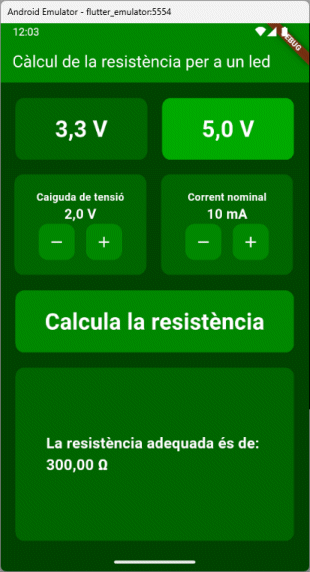

Arribats a aquest punt, l'aplicació, vista amb l'emulador, té aquest aspecte:
Un cop acabat el programa, anem a posar el contingut complet dels diferents fitxers de programa. Comencem pel programa principal:
main.dart
import 'package:flutter/material.dart'; import 'package:resistled_app/core/colors.dart'; import 'package:resistled_app/screens/pant_principal.dart';
void main() {
runApp(const MainApp());
}
class MainApp extends StatelessWidget {
const MainApp({super.key});
@override
Widget build(BuildContext context) {
return MaterialApp(
home: Scaffold(
appBar: AppBar(
title: Text("Resistència per a un led"),
backgroundColor: ColorsApp.primari,
foregroundColor: ColorsApp.text,
),
backgroundColor: ColorsApp.fons,
body: PantPral(),
),
);
}
}
pant_principal.dart
import 'package:flutter/material.dart'; import 'package:resistled_app/components/boto_calc.dart'; import 'package:resistled_app/components/entra_num.dart'; import 'package:resistled_app/components/req_result.dart'; import 'package:resistled_app/components/selector_tens.dart';
class PantPral extends StatefulWidget {
const PantPral({super.key});
@override
State<PantPral> createState() => _PantPralState();
}
class _PantPralState extends State<PantPral> {
double tensAlim = 3.3; // V
double caigudaTens = 1.6; // V
double correntNom = 10; // mA
double resisten = -1;
String txt = "";
final double maxCaig = 3.3;
final double minCaig = 0.4;
final double maxCorr = 50.0;
final double minCorr = 1.0;
@override
Widget build(BuildContext context) {
return Column(
children: [
SelectorTens(
tensioAlim: tensAlim,
canviTens: (double novaTensio) {
setState(() {
tensAlim = novaTensio;
resisten = -1;
});
},
),
Padding(
padding: const EdgeInsets.only(left: 20, right: 20),
child: Row(
children: [
Expanded(
child: EntraNum(
titol: "Caiguda de tensió",
valor: caigudaTens.toStringAsFixed(1).replaceAll('.', ','),
unitats: "V",
incrementar: () {
setState(() {
if (caigudaTens < maxCaig) {
caigudaTens += 0.1;
resisten = -1;
}
});
},
decrementar: () {
setState(() {
if (caigudaTens > minCaig) {
caigudaTens -= 0.1;
resisten = -1;
}
});
},
),
),
SizedBox(width: 20),
Expanded(
child: EntraNum(
titol: "Corrent nominal",
valor: correntNom.toStringAsFixed(0).replaceAll('.', ','),
unitats: "mA",
incrementar: () {
setState(() {
if (correntNom < maxCorr) {
correntNom++;
resisten = -1;
}
});
},
decrementar: () {
setState(() {
if (correntNom > minCorr) {
correntNom--;
resisten = -1;
}
});
},
),
),
],
),
),
BotoCalc(
calcRes: () {
setState(() {
resisten = (tensAlim - caigudaTens) / (correntNom / 1000);
});
},
),
ReqResult(resistencia: resisten),
],
);
}
}
selector_tens.dart
import 'package:flutter/material.dart'; import 'package:resistled_app/core/colors.dart'; import 'package:resistled_app/core/estils.dart';
class SelectorTens extends StatefulWidget {
final double tensioAlim;
final Function(double novaTens) canviTens;
const SelectorTens({super.key, required this.tensioAlim, required this.canviTens});
@override
State<SelectorTens> createState() => _SelectorTensState();
}
class _SelectorTensState extends State<SelectorTens> {
@override
Widget build(BuildContext context) {
return Row(
children: [
Expanded(
child: GestureDetector(
onTap: () {
setState(() {
widget.canviTens(3.3);
});
},
child: Padding(
padding: const EdgeInsets.only(top: 20, bottom: 20, left: 20, right: 10),
child: Container(
alignment: Alignment.center,
decoration: BoxDecoration(
color: widget.tensioAlim == 3.3 ? ColorsApp.compSelec : ColorsApp.component,
borderRadius: BorderRadius.circular(12),
),
child: Padding(
padding: const EdgeInsets.all(20.0),
child: Text("3,3 V", style: Estils.estilTextBotons),
),
),
),
),
),
Expanded(
child: GestureDetector(
onTap: () {
setState(() {
widget.canviTens(5.0);
});
},
child: Padding(
padding: const EdgeInsets.only(top: 20, bottom: 20, left: 10, right: 20),
child: Container(
alignment: Alignment.center,
decoration: BoxDecoration(
color: widget.tensioAlim == 5.0 ? ColorsApp.compSelec : ColorsApp.component,
borderRadius: BorderRadius.circular(12),
),
child: Padding(
padding: const EdgeInsets.all(20.0),
child: Text("5,0 V", style: Estils.estilTextBotons),
),
),
),
),
),
],
);
}
}
entra_num.dart
import 'package:flutter/material.dart'; import 'package:resistled_app/core/colors.dart'; import 'package:resistled_app/core/decora.dart'; import 'package:resistled_app/core/estils.dart';
class EntraNum extends StatefulWidget {
final String titol;
final String valor;
final String unitats;
final Function() incrementar;
final Function() decrementar;
const EntraNum({
super.key,
required this.titol,
required this.valor,
required this.unitats,
required this.incrementar,
required this.decrementar,
});
@override
State<EntraNum> createState() => _EntraNumState();
}
class _EntraNumState extends State<EntraNum> {
@override
Widget build(BuildContext context) {
return Container(
alignment: Alignment.center,
decoration: BoxDecoration(
color: ColorsApp.component,
borderRadius: BorderRadius.circular(12),
),
child: Padding(
padding: const EdgeInsets.all(20.0),
child: Column(
mainAxisAlignment: MainAxisAlignment.center,
children: [
Text(widget.titol, style: Estils.estilTextTitols),
Text('${widget.valor} ${widget.unitats}', style: Estils.estilTextValors),
Row(
mainAxisAlignment: MainAxisAlignment.center,
children: [
Container(
decoration: DecoraApp.decorBotons,
child: IconButton(
onPressed: () {
widget.decrementar();
},
icon: Icon(Icons.remove),
color: ColorsApp.text,
),
),
SizedBox(width: 15),
Container(
decoration: DecoraApp.decorBotons,
child: IconButton(
onPressed: () {
widget.incrementar();
},
icon: Icon(Icons.add),
color: ColorsApp.text,
),
),
],
),
],
),
),
);
}
}
boto_calc.dart
import 'package:flutter/material.dart'; import 'package:resistled_app/core/colors.dart'; import 'package:resistled_app/core/estils.dart';
class BotoCalc extends StatefulWidget {
final Function() calcRes;
const BotoCalc({super.key, required this.calcRes});
@override
State<BotoCalc> createState() => _BotoCalcState();
}
class _BotoCalcState extends State<BotoCalc> {
@override
Widget build(BuildContext context) {
return Padding(
padding: const EdgeInsets.all(20),
child: GestureDetector(
onTap: () {
setState(() {
widget.calcRes();
});
},
child: Container(
alignment: Alignment.center,
decoration: BoxDecoration(
color: ColorsApp.primari,
borderRadius: BorderRadius.circular(12),
),
child: Padding(
padding: const EdgeInsets.all(20.0),
child: Text("Calcula...", style: Estils.estilTextBotons),
),
),
),
);
}
}
req_result.dart
import 'package:flutter/material.dart'; import 'package:resistled_app/core/colors.dart'; import 'package:resistled_app/core/estils.dart';
class ReqResult extends StatefulWidget {
final double resistencia;
const ReqResult({super.key, required this.resistencia});
@override
State<ReqResult> createState() => _ReqResultState();
}
class _ReqResultState extends State<ReqResult> {
@override
Widget build(BuildContext context) {
String txt = widget.resistencia >= 0
? "La resistència adequada és de: \n${widget.resistencia.toStringAsFixed(2).replaceAll('.', ',')} Ω"
: "";
return Expanded(
child: Padding(
padding: const EdgeInsets.only(left: 20, right: 20, bottom: 40),
child: Container(
alignment: Alignment.center,
decoration: BoxDecoration(
color: ColorsApp.component,
borderRadius: BorderRadius.circular(12),
),
child: Padding(
padding: const EdgeInsets.all(20.0),
child: Text(txt, style: Estils.estilTextResultat),
),
),
),
);
}
}
colors.dart
import 'dart:ui';
class ColorsApp {
static const Color fons = Color(0xFF004400);
static const Color primari = Color(0xFF008800);
static const Color text = Color(0xFFFFFFFF);
static const Color component = Color(0xFF006600);
static const Color compSelec = Color(0xFF00AA00);
}
decora.dart
import 'package:flutter/material.dart'; import 'package:resistled_app/core/colors.dart';
class DecoraApp {
static BoxDecoration decorBotons = BoxDecoration(
color: ColorsApp.primari,
borderRadius: BorderRadius.circular(12),
);
}
estils.dart
import 'package:flutter/material.dart'; import 'package:resistled_app/core/colors.dart';
class Estils {
static const TextStyle estilTextBotons = TextStyle(
color: ColorsApp.text,
fontSize: 30,
fontWeight: FontWeight.bold,
);
static const TextStyle estilTextTitols = TextStyle(
color: ColorsApp.text,
fontSize: 14,
fontWeight: FontWeight.bold,
);
static const TextStyle estilTextValors = TextStyle(
color: ColorsApp.text,
fontSize: 18,
fontWeight: FontWeight.bold,
);
static const TextStyle estilTextResultat = TextStyle(
color: ColorsApp.text,
fontSize: 20,
fontWeight: FontWeight.bold,
);
}
